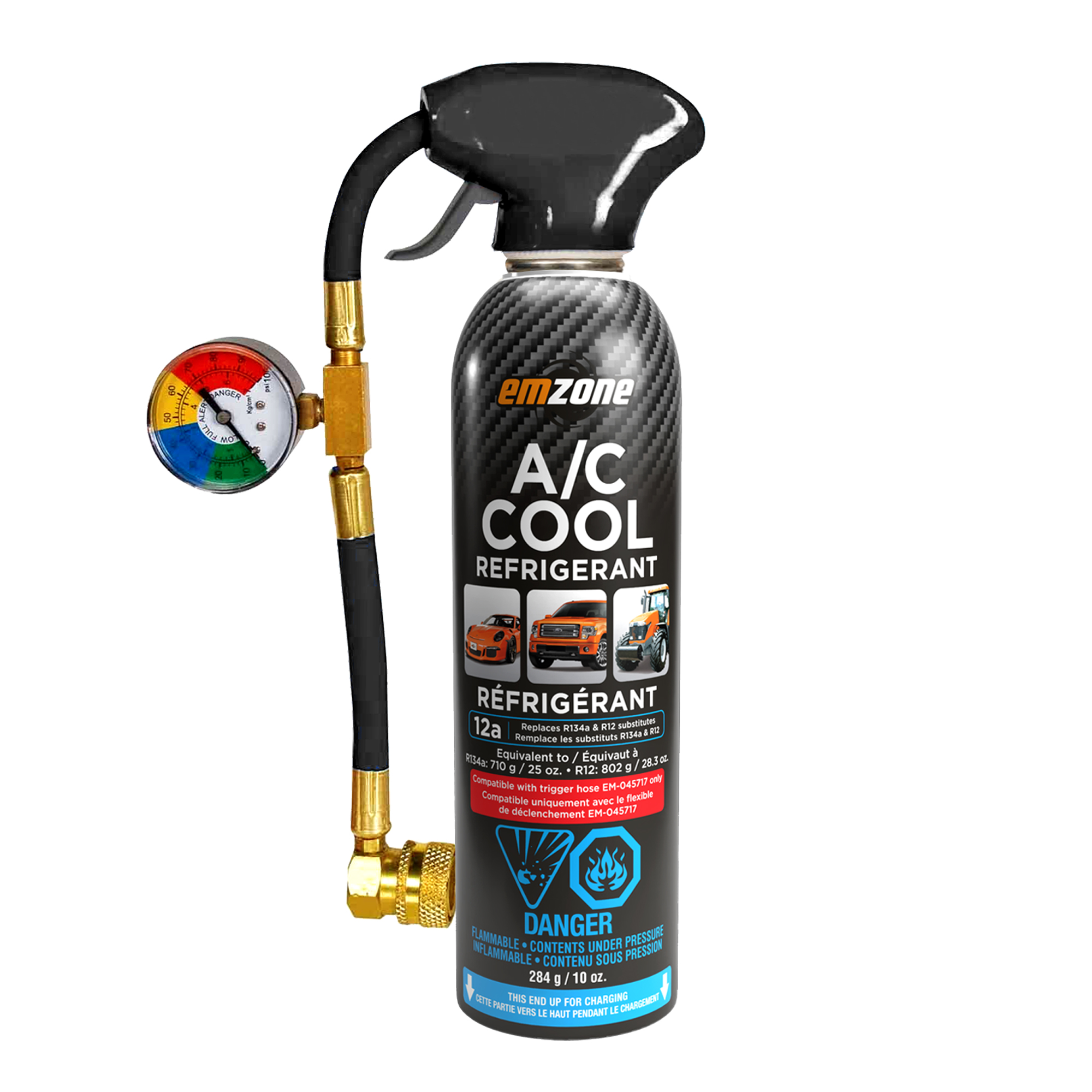

12a A/C Cool Refrigerant

emzone® 12a A/C Cool Refrigerant with resealable valve is an environmentally friendly replacement alternative for ozone depleting R-12 and global warming R134a products. It is non-toxic and non-ozone depleting. The 12a A/C Cool Refrigerant also contains high performance oil to improve system efficiency and Universal UV Dye to help with leak detection.
This user-friendly Kit is complete with easy to use trigger recharge hose that works with the new emzone® resealable cans.
Featuring an in line pressure gauge and a trigger mechanism to control the flow of refrigerant from the can. Makes DIY A/C maintenance easier by allowing you to read pressure (just release the trigger to measure pressure) and dispense refrigerant (squeeze the trigger to fill) in a few simple steps, ensuring you don’t overcharge or undercharge the system.

ITEM NUMBER   45850
PRODUCT SIZE   284 g / 10 oz
UPC NUMBER    0 60480 45850 0

emzone® A/C COOL REFRIGERANT has been formulated to be a replacement for R134a and R12 substitutes in car, truck, tractor and other A/C systems.

DIRECTIONS:
1. 1. Unscrew and remove trigger with hose from top of can. Shake can well.
2. Remove the white plastic safety seal from base of trigger and discard.
3. Re-install trigger on top of can by rotating in clockwise direction. Do Not over tighten.
4. Connect charging hose to low side pressure service port and invert can.
5. With the compressor off, install minimum charge by squeezing the trigger.
6. After minimum charge is achieved, start compressor and turn system to maximum.
7. Add additional 12a as required while periodically checking the Low Side system pressure, release the trigger to measure pressure. Do not overcharge system.
8. Remove charging hose and check system for leaks. Unscrew the trigger hose hose from the resealable valve can.
9. Apply 12a Refrigerant label on A/C system in visible area near service port.

Prior to charging your system
Review regulations in your area. Recover any existing refrigerant into an appropriate container. Existing refrigerant must be removed by a qualified technician. Do not mix refrigerants.
Recycle empty containers in accordance with local guidelines.
Store unused product in a cool dry well ventilated area.

See User Reference Guide for additional information and details.

REFERENCE GUIDES

Products are FOR USE BY QUALIFIED PERSONNEL ONLY
Check with manufacturer before use in EV.
